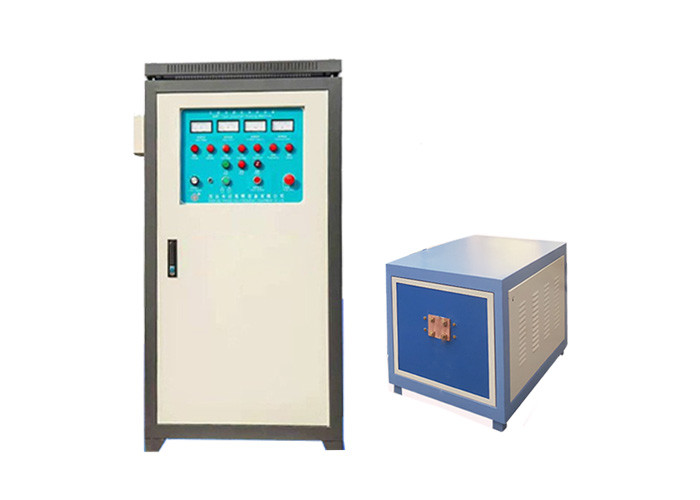

Automatic Medium Frequency Induction Heating Machine Portable 180KW 22khz
discussible
MOQ
discussible
Price
Automatic Medium Frequency Induction Heating Machine Portable 180KW 22khz
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-ZP-180
High Light:

Automatic Medium Frequency Induction Heating Machine

,

180KW Portable Induction Heating Machine

,

22khz Portable Induction Heating Machine

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-ZP-180
Power: 180KW
Maximum Input Current:: 180A
Input Power:: 180kw
Oscillation Frequency: 22khz
Host Volume:: 364mm×364mm×464mm
Product Description

Medium Frequency Induction Heating Equipment Induction Heating Automatic Production Equipment



Overview of intermediate frequency induction heating equipment:

Small size, space saving and simple operation; Microcomputer software is used to automatically replenish the frequency to minimize the production requirements of the induction head. The panel only has a power switch and a power regulation touch key, which makes the operation very simple; High frequency, stable heating output, no vibration in working heating, ensuring accurate welding position, and welding very fine metal with a minimum diameter of 0.1mm. Sensors can be customized according to different shapes of workpieces.



Technical parameters of high frequency induction heating equipment:

Model: LC-ZP-180KW

Maximum input current: 180A

Input power: 180kW

Oscillation frequency: 22khz

Input voltage: 370v

Host volume:364mm×364mm×464mm

Cooling water pressure: 0.1-0.3mpa

Cooling water flow (main engine): 15L / min (0.1MPa)

Cooling water flow (transformer): 18L / min (0.1MPa)

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%



Application fields of medium frequency induction heating equipment:

1. Crankshaft, connecting rod, piston pin, crank pin, sprocket, camshaft, valve, various rocker arms and rocker shafts; 2. High frequency quenching treatment of various gears, spline shafts, transmission half shafts, small shafts and shift forks in the gearbox.

3. High frequency quenching of gears and shafts on various electric tools.

4. Heat treatment for high frequency quenching of various hydraulic components and pneumatic components. Such as a column of a plunger pump.

5. Plug, rotor of rotor pump; Quenching of reversing shafts on various valves and gears of gear pumps. 6. Heat treatment of metal parts. Such as high frequency quenching of various gears, sprockets, shafts, spline shafts, pins, etc.

7. Quenching of machine tool surface guide rails in the machine tool industry.
