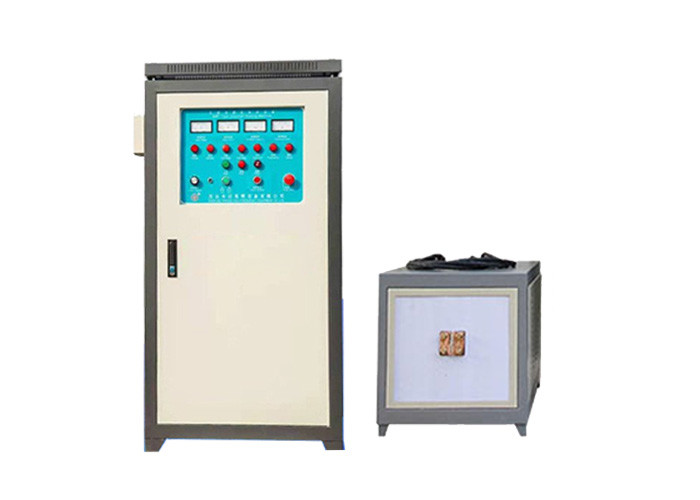

Medium Frequency Induction Heating Equipment Quenching Annealing Through Firing Medium Frequency Machine
Product overview of intermediate frequency induction heating equipment:
The basic requirements of the intermediate frequency induction heating equipment for the penetration heating induction coil are close coupling with the workpiece under full load and no-load conditions, satisfactory thermal and electrical insulation, and sufficient rigidity. Because the induction coil works in a harsh environment and must have high reliability, it must be carefully designed. Most of the design work of the induction coil is combined with the operating device and matching parts such as transformers and capacitors. After the main parameters have been determined, the arrangement of the induction coil must consider the influence of water cooling system, vibration and magnetic field leakage.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-185KW
Maximum input current: 185A
Input power: 185kW
Oscillation frequency: 23khz
Input voltage: 370v
Host volume:365mm×365mm×465mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Application range of medium frequency induction heating equipment:
(1) Welding materials: red copper and brass welding, tungsten steel and stainless steel welding, iron copper welding, copper aluminum welding, etc
(2) Daily necessities industry: welding of glasses, jewelry, watches and clocks, fishing gear, fishing tackle, hardware and other products
(3) Tool industry: saw tooth welding of cemented carbide saw blade, tool welding, heat treatment of cemented carbide tool products
(4) Electronic industry: thermal assembly of motor rotor, thermal matching of tool holder, silver welding and tin welding of electrode, vibrator welding, connector welding, etc
(5) Entertainment products: pipe accessories welding, golf head welding, etc
(6) Metal embedding: bulb electrode, etc
