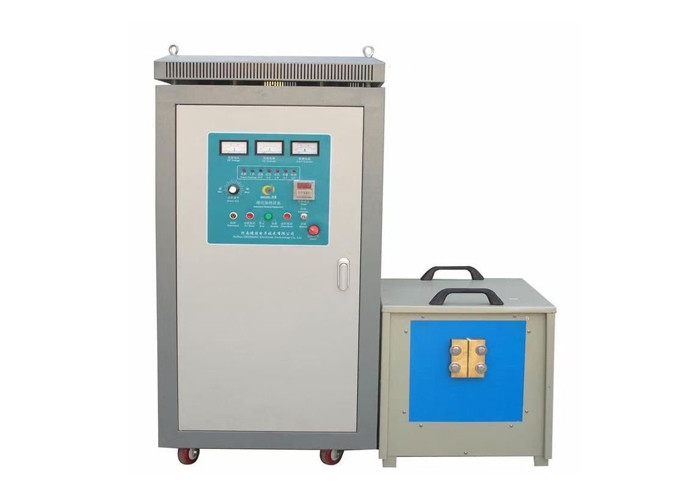

180KW Medium Frequency Induction Heating Equipment Gear Single Tooth Quenching
discussible
MOQ
discussible
Price
180KW Medium Frequency Induction Heating Equipment Gear Single Tooth Quenching
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-ZP-180
High Light:

180KW Medium Frequency Induction Heating Equipment

,

Medium Frequency Induction Heating Equipment Quenching

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-ZP-180
Power: 180KW
Maximum Input Current:: 180A
Input Power:: 180kw
Oscillation Frequency: 18khz
Host Volume:: 360mm×360mm×490mm
Product Description

Gear Single Tooth Quenching Equipment Steel Plate Overall Diathermy Medium Frequency Induction Heating Equipment



Overview of medium frequency induction heating equipment:

Medium frequency induction heating equipment has the advantages of small size, light weight, high efficiency, excellent hot working quality and favorable environment. It is rapidly eliminating coal fired furnace, gas fired furnace, oil fired furnace and ordinary resistance furnace. It is a new generation of metal heating equipment. The intermediate frequency furnace is the main equipment in the casting, forging and heat treatment workshop. Its stability, reliability and safety are the guarantee for the normal and stable operation of the casting, forging and heat treatment production line of the flow process. Medium frequency furnace has a very good development prospect in the field of hot processing, such as the main production of heating furnace before forging and forging, diathermy furnace and induction heating used for: diathermy, rolling, forging, bending, heat treatment (quenching), welding and other processes.



Technical parameters of high frequency induction heating equipment:

Model: LC-ZP-180KW

Maximum input current: 180A

Input power: 180kW

Oscillation frequency: 18khz

Input voltage: 380v

Host volume:360mm×360mm×490mm

Cooling water pressure: 0.1-0.3mpa

Cooling water flow (main engine): 15L / min (0.1MPa)

Cooling water flow (transformer): 18L / min (0.1MPa)

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%



Features of medium frequency induction heating equipment:

1. The production operation is simple, the incoming and outgoing materials are flexible, the degree of automation is high, and the online production can be realized.

2. The workpiece has fast heating speed, less oxidation and decarburization, high efficiency and good forging quality.

3. The heating length, speed and temperature of the workpiece can be accurately controlled.

4. The workpiece is heated evenly, the temperature difference between core and surface is small, and the control accuracy is high.

5. The inductor can be elaborately made according to customer requirements.

6. Comprehensive energy-saving optimization design, low energy consumption, high efficiency, and lower production cost than coal burning.

7. It meets the environmental protection requirements, has little pollution, and reduces the labor intensity of workers.
