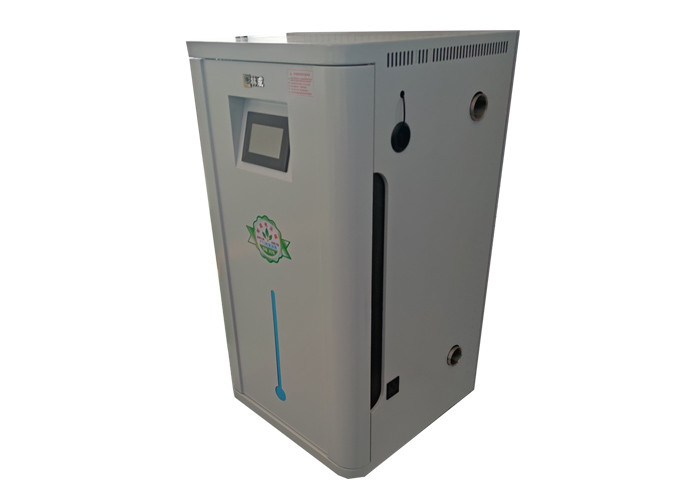

Electric Heating Furnace Intelligent Temperature Control, Simple Operation, Maintenance Free, Fully Automatic Operation
Product introduction of electric heating furnace:
The semiconductor electric heating furnace is a new type of electric boiler that uses electricity as energy, converts electric energy into heat energy through the semiconductor (PTC) ceramic heater, and delivers high-temperature hot water to the outside to meet the heating needs of users.
Electric Heater Boiler Technical Parameter:
Serial number | Product model | Company | LC-LD-40kw | LC-LD-50kw |
1 | Rated power | KW | 40 | 50 |
2 | Rated current | A | 48.6A | 58.6 |
3 | Heating area | ㎡ | 400-500 | 600-700 |
4 | input voltage | 50HZ | 380V | 380V |
5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
7 | Design thermal efficiency | ℃ | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 620*350*950mm | 620*350*950mm |
11 | Water inlet and outlet interface | DN | 32 | 40 |
Features of electric heating furnace:
1. High efficiency heat conduction: direct heat conduction, forced convection, electric heat conversion efficiency ≥ 98%;
2. Various forms: mainly wall hung boilers, or floor type boilers (generally used for high-power systems) according to user requirements;
3. Intelligent control: equipped with intelligent temperature control system, easy to operate, maintenance free, fully automatic operation; Within the allowable range of the system, the outlet water temperature and pump operating temperature can be set at will and kept constant; Set heating time freely in different periods to save energy; Memory function, one-time setting, permanent use;
4. Flexible control: the control system of high-power boiler can be customized according to user requirements, using industrial grade PLC and large touch screen for hierarchical control;
5. Safety protection: the semiconductor technology can truly achieve the water and electricity isolation to ensure the safety of users; It has safety protection functions such as leakage protection, water shortage protection, overtemperature protection, dry burning prevention, low temperature freezing protection, etc;
