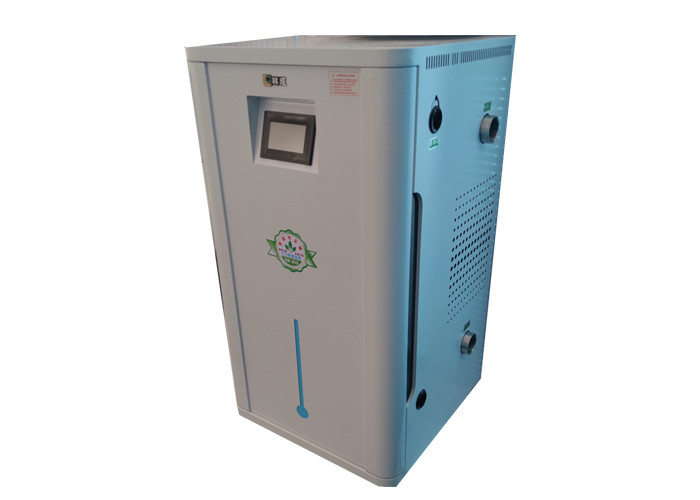

Electric Heating Furnace Electromagnetic Induction Heating Equipment Hot Water Water Boiler
Product introduction of electric heating furnace:
Electric heating boiler is a thermal equipment that converts electric energy into heat energy and heats water to pressurized hot water or steam (saturated steam). It does not need furnace, flue and chimney, nor does it need a place to store fuel, which greatly reduces the pollution caused by conventional coal-fired boilers. The electric boiler has the characteristics of no pollution, no noise, small floor area, convenient installation and use, fully automatic, safe and reliable, and thermal efficiency of more than 98%. It is a green environmental protection product.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-LD-40kw | LC-LD-50kw |
| 1 | Rated power | KW | 40 | 50 |
| 2 | Rated current | A | 48.6A | 58.6 |
| 3 | Heating area | ㎡ | 400-500 | 600-700 |
| 4 | input voltage | 50HZ | 380V | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 620*350*950mm | 620*350*950mm |
| 11 | Water inlet and outlet interface | DN | 40 | 40 |
Advantages of electric heating furnace:
1. Multiple protection, safety and stability:
2. The floor type direct thermoelectric boiler adopts external pump circulation, which is suitable for enterprises and institutions and large area centralized heating buildings. It can be used in parallel with multiple machines, and the heating area is not limited.
3. Low temperature anti freezing: when it is detected that the temperature is lower than 5 ℃, the equipment starts heating automatically, and when the temperature rises to 8 ℃, the equipment stops heating.
4. Leakage protection: multiple leakage protection functions, automatically disconnect the power supply when detecting the system leakage.
5. Timed by time: the equipment has a three stage timing function, which can control heating by stages according to the demand.
6. Memory function: various set parameters have memory function, and it is unnecessary to reset them after cutting off the power supply and putting them into operation.
7. High temperature protection: the high temperature probe ensures that the water temperature exceeds 95 ℃ and automatically stops heating.
8. Water pump operating temperature setting: the equipment is equipped with a special power socket for the circulating pump, which can control the opening and closing of the circulating pump according to the set temperature.
9. Intelligent constant temperature: the machine is shut down for heat preservation when the set high temperature is reached, and the heating is automatically started when the set low temperature is lower, and the constant temperature is always maintained.
10. Anti dry burning function: the equipment is equipped with anti dry burning probe. By detecting the water level in the machine, the whistle will sound when there is no water, and the equipment will automatically stop heating.
