The Constant Temperature Of Floor Type Electric Heating Boiler Of Electric Heating Furnace Can Only Be Controlled

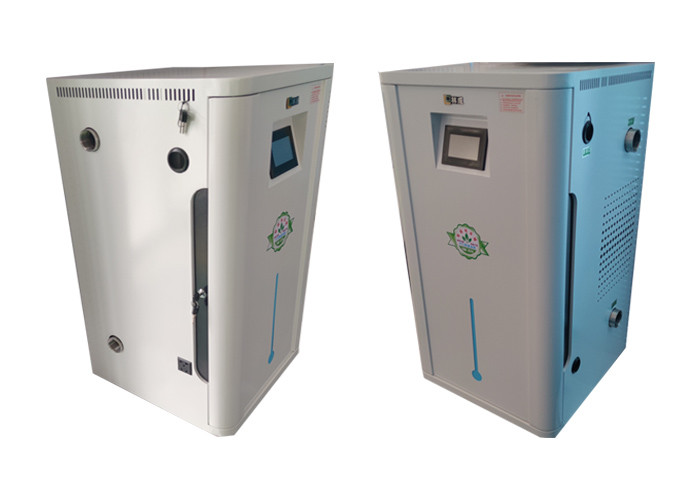

Product introduction of electric heating furnace:
It takes electric power as energy and converts electric energy into heat energy through electric heating pipes, so as to deliver high-temperature hot water to the outside to meet the heating needs of users. The electric boiler body is composed of steel plastic spraying cabinet, intelligent control system, detection and protection system, furnace liner, electric heating pipe, low-voltage electrical system, circulating water pump, inlet and outlet pipes, etc. The boiler adopts an intelligent control system, and the touch buttons can be set at will.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-LD-45kw | LC-LD-55kw |
| 1 | Rated power | KW | 45 | 55 |
| 2 | Rated current | A | 48.6A | 58.6 |
| 3 | Heating area | ㎡ | 700-800 | 800-900 |
| 4 | input voltage | 50HZ | 380V | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 620*350*950mm | 620*350*950mm |
| 11 | Water inlet and outlet interface | DN | 40 | 40 |
Advantages of electric heating furnace:
1. Multiple protection, safety and stability:
2. The floor type direct thermoelectric boiler adopts external pump circulation, which is suitable for enterprises and institutions and large area centralized heating buildings. It can be used in parallel with multiple machines, and the heating area is not limited.
3. Low temperature anti freezing: when it is detected that the temperature is lower than 5 ℃, the equipment starts heating automatically, and when the temperature rises to 8 ℃, the equipment stops heating.
4. Leakage protection: multiple leakage protection functions, automatically disconnect the power supply when detecting the system leakage.
5. Timed by time: the equipment has a three stage timing function, which can control heating by stages according to the demand.
6. Memory function: various set parameters have memory function, and it is unnecessary to reset them after cutting off the power supply and putting them into operation.
7. High temperature protection: the high temperature probe ensures that the water temperature exceeds 95 ℃ and automatically stops heating.
8. Water pump operating temperature setting: the equipment is equipped with a special power socket for the circulating pump, which can control the opening and closing of the circulating pump according to the set temperature.
9. Intelligent constant temperature: the machine is shut down for heat preservation when the set high temperature is reached, and the heating is automatically started when the set low temperature is lower, and the constant temperature is always maintained.
10. Anti dry burning function: the equipment is equipped with anti dry burning probe. By detecting the water level in the machine, the whistle will sound when there is no water, and the equipment will automatically stop heating.
